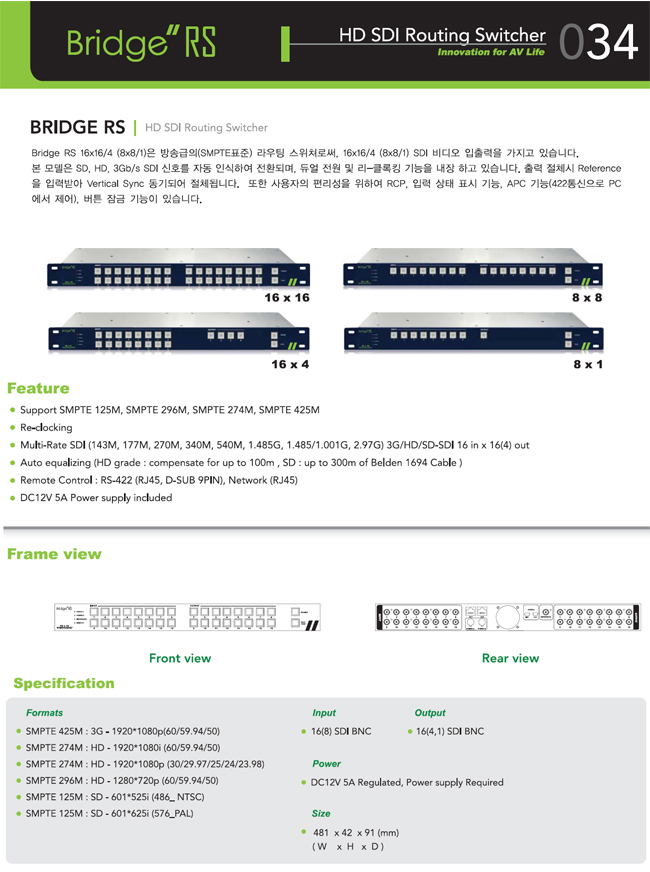

[20382]Buy Korea BRIDGE RS Routing SDI스위쳐 8*4 HD-SDI지원
스   펙 : Bridge RS_8X4
제조사 : 디지털포캐스트
수   량 :
판매가 : 1,250,000 원
적립금 : 0 원
5만원이상 구매시 무료배송 납품/납기 견적요청은 전화주시기 바랍니다.
장바구니담기 바로주문하기
이전화면
• Support SMPTE 292M, SMPTE 344M, SMPTE 259M, SMPTE 424M
• Re-clocking
• Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G, 2.97G)
• 3G/HD/SD-SDI 8 in x 4 out
• 1 HDMI Output.
• Auto equalizing (HD grade : compensate for up to 100m, SD : up to 300m of Belden 1694 Cable )
• RS-422 deck control ports (RJ45)
• DC12V 3.33A Power supply included

 Electrical
Voltage_90 ~ 240V AC 50/60Hz
Power Dissipation_< 28W(12V DC, 3.33A)
Temperature_0 ~ 40˚C
Physical
Size_330mm x 40mm x 110mm(W x H x D)
Weight_1.55Kg
Standards
SD Format Support_NTSC(480i59.94) and PAL(576i50).
HD Format Support_720p(60/59.94/50)
                                1080i(60/59.94/50)
                                1080P(30/29.97/25/24/23.98)
                                1080p(60/59.94)3G
SDI Compliance_SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B
SDI Video Sampling_4:2:2 and 4:4:4.
SDI Video Rates_SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD SDI.
SDI Auto Switching_Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard
