[15416]EXTRON HDXP Plus 3232 [°¡°Ý¹®ÀÇ]
½º   Æå : 32x32 Multi-Rate SDI Matrix Switcher
Á¦Á¶»ç : Extron [ÀͽºÆ®·Ð]
¼ö   ·® : °³
ÆǸŰ¡ : 0 ¿ø
Àû¸³±Ý : 0 ¿ø
100000ÀÌ»ó ±¸¸Å½Ã ¹«·á¹è¼Û ³³Ç°/³³±â °ßÀû¿äûÀº ÀüÈ­Áֽñ⠹ٶø´Ï´Ù.
Àå¹Ù±¸´Ï´ã±â ¹Ù·ÎÁÖ¹®Çϱâ
ÀÌÀüÈ­¸é

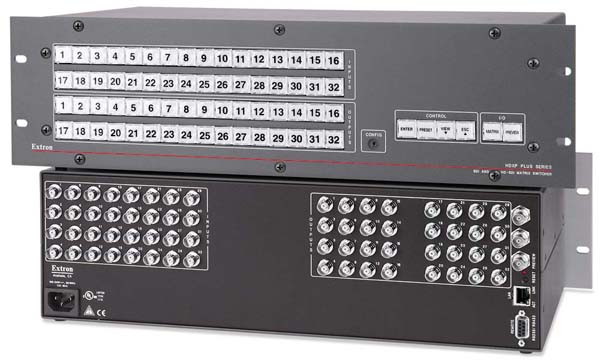

HDXP Plus 3232   32x32 Multi-Rate SDI Matrix Switcher   60-797-01


The Extron HDXP Plus 3232 matrix switcher is capable of routing all SMPTE and ITU standard serial digital video signals. In addition, the HDXP Plus 3232 will pass embedded audio, as well as ancillary ID and metadata information, along with the digital video signal. It is ideal for routing HDTV and other high resolution serial digital video sources for digital cinema projection, biomedical imaging, satellite mapping and visualization, rental and staging environments, and other applications.

Zero-Skew Design

The HDXP Plus Series utilizes a unique, zero-skew design that's optimized for the switching of SMPTE 372M dual-link HD-SDI digital video signals. Adjacent pairs of input and output connectors share equal data paths, ensuring that dual-link signals are switched without undesirable timing errors. Incoming signals are equalized to 300 feet (100 m) or more on Extron RG6 or equivalent cable.

HDXP Plus matrix switchers automatically adapt to the input signal rate, and the output is automatically reclocked to the rate of the signal routed to it. Reclocked signals can be driven 300 feet (100 m) or more on Extron RG6 or equivalent cable. In addition to automatic reclocking, users can also disable reclocking, on a per output basis, or preset output reclocking to a fixed rate. This ensures standards independence, now and in the future, with virtually any serial digital video data rate.

Switching Modes

The HDXP Plus Series features two discrete switching modes for ease-of-operation. Matrix Switching Mode provides for selection of any input to any or all outputs. Preview Mode allows any selected input to be routed to a separate, dedicated preview output. The preview output is in addition to the available program outputs, and eliminates the possibility of preview signals being inadvertently routed to a live program output during a presentation.

Control Features

The HDXP Plus Series is engineered with a range of innovative Extron control features designed to simplify operation in critical presentation environments.

Key features include I/O grouping, which allows SDI and HD-SDI inputs and outputs of different data rates to be grouped together, thus eliminating the chance that an input of one data rate will be switched to an output requiring a different rate. The HDXP Plus 3232 expands I/O grouping by including the appropriate sync reference signal, bi-level for SDI and tri-level for HD-SDI, with the video I/O group.

Extron's DSVP¢â - Digital Sync Validation Processing provides verification of both input data rates and reclocked output data rates through RS-232 as well as the integrated IP Link¢ç Ethernet port. DSVP adds a level of confidence when designing a multi-rate digital video routing system with a variety of input and output digital signal types.

IP Link¢ç Ethernet Control

The HDXP Plus Series is equipped with Extron's IP Link¢ç, an IP integration technology. IP Link provides technical administrators with the ability to view embedded Web pages and control, manage, and troubleshoot the switcher from any authorized LAN, WAN, or Web client.

Features

  • Inputs: Video on female BNC connectors

  • Outputs: Video on female BNC connectors

  • Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI, and SDI — Complies with SMPTE 259M, ITU-R BT.601, SMPTE 292M, ITU-R BT.1120, SMPTE 372M, and SMPTE 424M standards.

  • Data rates from 143 Mbps to 2.97 Gbps — Supports SDI, HD-SDI, 3G-SDI, and SMPTE 372M dual-link HD-SDI digital video signals.

  • Optimized for dual-link HD-SDI — Zero-skew design pairs adjacent input and output connectors for superb performance with very high data rate signals, even over long distances.

  • Passes embedded audio, ancillary ID and metadata information, and SD/HD-SDTI digital video signals — Passes all data allowed within published SMPTE and ITU digital video standards, including embedded audio, ancillary ID and metadata information, and SDTI (SMPTE 305M) and HD-SDTI (SMPTE 348M) digital video signals.

  • Input equalization — Equalizes input signals 300 feet (100 m) or more on Extron RG6 or equivalent cable.

  • Output reclocking — Reclocks and drives output signals 300 feet (100 m) or more on Extron RG6 or equivalent cable.

  • User-selectable reclocking modes — The HDXP Plus Series automatically reclocks SMPTE and ITU standard serial digital video rates. Reclockers can also be set to a single, predetermined SMPTE/ITU standard data rate for optimum switching performance, or bypassed to allow for switching nonstandard data rates.

  • DSVP¢â - Digital Sync Validation Processing — Polls inputs and outputs to verify data rates. DSVP then transmits the information to the user through the serial or IP Link ports.

  • Input preview mode with dedicated output — Provides preview of any available input signal before switching to a live output. All program outputs remain available for signal distribution.

  • Video genlock — Separate bi-level and tri-level references are provided for correct vertical interval switch timing for SDI and HD-SDI signals.

  • 32 global presets — Frequently used I/O configurations may be saved and recalled either from the front panel, IP Link, or serial control.

  • View I/O mode — Users can easily view which inputs and outputs are actively connected.

  • I/O grouping — Allows SDI and HD-SDI I/Os to be grouped separately, along with the appropriate sync reference signal.

  • Tri-color, backlit buttons can be custom labeled for easy identification — Buttons illuminate red, green, or amber, depending on function, for ease of use in low-light environments.

  • QS-FPC¢â - QuickSwitch Front Panel Controller — Provides a discrete button for each input and output, allowing for simple, intuitive operation.

  • IP Link¢ç Ethernet control — Engineered to meet the needs of professional A/V environments, IP Link enables the HDXP Plus matrix switchers to be proactively monitored and managed over a LAN, WAN, or the Internet, using standard TCP/IP protocols. IP Link provides for remote selection of input and output ties, output reclocking mode, and advanced system diagnostics.

  • IP Link enhanced diagnostics — Provides for monitoring of internal product operating temperature and power supply voltages, e-mail notification of input signal loss, and other critical service information.

  • RS-232 and RS-422 control port — Using serial commands, the HDXP Plus Series can be controlled and configured via the included Windows-based control software, or integrated into a control system. Extron products use the SIS¢â - Simple Instruction Set command protocol, a set of basic ASCII code commands that allow for quick and easy programming. The RS-232 and RS-422 port also makes it easy to install firmware updates.

  • Optional control panels and keypads — Provide the flexibility to control a HDXP Plus Series matrix switcher from a remote location.

  • Internal universal power supply — For worldwide compatibility, the HDXP Plus Series is equipped with a highly reliable, international power supply rated at 500,000 hours MTBF.

    HDXP Plus Series
    Video
       Routing
          1616 Series  16 x 17 matrix
          3216 Series  32 x 17 matrix
          3232 Series  32 x 33 matrix
       Gain  Unity
       Data rates  19 Mbps to 2.970 Gbps
       Auto data rate lock  Yes
       Standard  SMPTE 259M, SMPTE 292M, SMPTE 372M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
       Data types  8 bit or 10 bit
    Video input
       Number/signal type  16 or 32 SDI or HDSDI digital component video
       Connectors  16 or 32 female BNC
       Input cable equalization  Automatic
          HD-SDI  150 m using Extron RG6 or Belden 1694A cable or equivalent
    100 m using Extron RG59 or Belden 1505A cable or equivalent
          SDI  200 m using Extron RG6 or Belden 1694A cable or equivalent
    150 m using Extron RG59 or Belden 1505A cable or equivalent
       Nominal level  800 mV ¡¾10%
       Impedance  75 ohms
       Return loss  <-15 dB @ 1 MHz to 1.5 GHz
       External sync (genlock), 3232 Series only  -0.4V to +5.0 Vp-p; 1 bi-level, 1 tri-level
    Video output
       Number/signal type
          1616 Series, 3216 Series  16 SDI or HDSDI digital component video (8- or 10-bit SMPTE 259M, SMPTE 292M, SMPTE 424M) (Output 17 is a preview output.)
    1 SDI or HDSDI digital component video (for preview output)
          3232 Series  32 SDI or HDSDI digital component video (8- or 10-bit SMPTE 259M, SMPTE 292M, SMPTE 424M) (Output 33 is a preview output.)
    1 SDI or HDSDI digital component video (for preview output)
       Connectors
          1616 Series, 3216 Series  16 female BNC
    1 female BNC for preview output (labeled as output 17)
          3232 Series  32 female BNC
    1 female BNC for preview output (labeled as output 33)
       Nominal level  800 mV ¡¾10%
       Impedance  75 ohms
       Return loss  <-15 dB @ 1 MHz to 1.5 GHz
       DC offset (termin. @ 75 ohms)  ¡¾500 mV with input at 0 offset
       Jitter  <0.2 UI
       Rise and fall time (20-80%)  SDI = 700 ps ¡¾ 100 ps
    HD-SDI = 250 ps ¡¾ 100 ps
       Re-clocking  Automatic, or bypass mode for nonstandard rates, or fixed
    Control/remote — switcher
       Serial control ports  1 RS-232 or RS-422, female 9-pin D connector
    1 RS-232 front panel 2.5 mm mini stereo jack
       Baud rate and protocol  9600 (default), 19200, 38400, 115200 baud (adjustable); 8 data bits, 1 stop bit, no parity
       Serial control pin configurations
          9-pin D connector  RS-232: 2 = TX, 3 = RX, 5 = GND
    RS-422: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = Tx+
          Mini stereo jack  RS-232: tip = TX, ring = RX, sleeve = GND
       Ethernet control port  1 female RJ-45 connector
       Ethernet data rate  10/100Base-T, half/full duplex with autodetect
       Ethernet protocol  ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet
       Program control  Extron control/configuration program for Windows¢ç
    Extron Simple Instruction Set (SIS¢â)
    Microsoft¢ç Internet Explorer¢ç, Telnet
    General
       Power  100 VAC to 240 VAC, 50-60 Hz, 80 watts, internal
       Temperature/humidity  Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing
    Operating: +32 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing
       Cooling  Convection,  no vents
       Mounting
          Rack mount  Yes
       Enclosure type  Metal
       Enclosure dimensions
          HDXP Plus 1616, HDXP Plus 3216  3.5" H x 17.0" W x 9.4" D (2U high, full rack wide)
    (8.9 cm H x 43.2 cm W x 23.9 cm D)
    (Depth excludes connectors and knobs.  Width excludes rack ears.)
          HDXP Plus 3232  5.25" H x 17.0" W x 9.4" D (3U high, full rack wide)
    (13.3 cm H x 43.2 cm W x 23.9 cm D)
    (Depth excludes connectors and knobs.  Width excludes rack ears.)
       Product weight
          HDXP Plus 1616, HDXP Plus 3216  8.9 lbs (4.1 kg)
          HDXP Plus 3232  11.9 lbs (5.4 kg)
       Shipping weight
          HDXP Plus 1616, HDXP Plus 3216  15 lbs (7 kg)
          HDXP Plus 3232  18 lbs (9 kg)
       DIM weight, international  25 lbs (12 kg)
       Vibration  ISTA 1A in carton (International Safe Transit Association)
       Compliances
          Safety  CE, c-UL, UL
          EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
       MTBF  30,000 hours
       Warranty  3 years parts and labor
