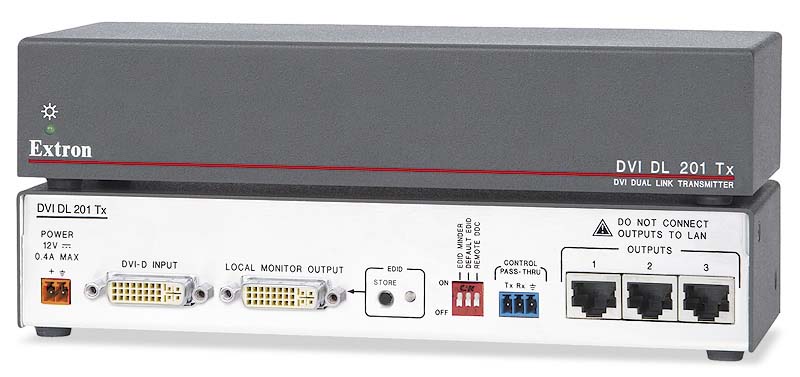

| DVI DL 201 Tx/Rx Series |
| NOTE |
*Dual link DVI is backwards compatible with all single link DVI/HDMI signals. | |
|
| Video |
| Maximum data rate |
10 Gbps (3.3 Gbps per color) |
| Maximum pixel clock |
330 MHz (165 MHz per link) |
| Resolution range |
Up to 2560x1600 @ 60 Hz |
| Formats |
RGB and YCbCr digital video |
| Standards |
DVI 1.0, HDMI 1.2 |
|
| Video input and loop-through — transmitter |
| Number/signal type |
1 dual link DVI-D* input
1 dual link DVI-D* local loop-through |
| Connectors |
2 DVI-I female (1 for input, 1 for loop-through) |
|
| Interconnection between transmitter and receiver |
| Connectors |
(3) RJ-45 per unit for 3 cables connecting the transmitter and receiver |
| Termination standards |
TIA/EIA T568A or T568B |
| Signal transmission distance |
|
| 1920x1200 or 1080p @ 60 Hz |
|
| Extron DTP26 cable |
Up to 150' (45 m) |
| 2560x1600 @ 60 Hz |
| CAT 5/5e/6 STP or Extron DTP26 |
Up to 125' (38 m) |
| CAT 5/5e/6 UTP cable |
100' (30 m)
Longer distances are possible with lower rates. |
| NOTE |
The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system. | |
|
| Video output — receiver |
| Number/signal type |
1 dual link DVI-D* |
| Connectors |
1 DVI-I female |
|
| Control/remote — external device (pass-through) |
| Serial control port input |
|
| Transmitter |
RS-232 via (1) 3.5 mm, 3 pole captive screw connector |
| Receiver |
1 set of proprietary signals on a female RJ-45 jack |
| Serial control port output |
|
| Transmitter |
1 set of proprietary signals on a female RJ-45 jack |
| Receiver |
RS-232 via a 3.5 mm, 3 pole captive screw connector |
| NOTE |
Protocol is mirrored between the transmitter and the receiver. | |
| Serial control pin configurations |
Captive screw connectors: 1 = Tx, 2 = Rx, 3 = GND |
|
| General |
| Recommended cable type |
CAT 5/5e/6 (shielded or unshielded) or Extron DTP26 |
| External power supply |
100 VAC to 240 VAC, 50-60 Hz, 6 W max., external; to 12 VDC, 2 A, regulated |
| Power input requirements |
12 VDC, 0.4 A for both transmitter and receiver |
| NOTE |
Each transmitter and receiver can be powered locally by an external power supply. The receiver can be powered remotely by a power supply connected to the transmitter on the other end of the CAT 5/5e/6 or Extron DTP26 cable. | |
| Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling |
Convection, no vents |
| Mounting |
|
| Rack mount |
Yes, with optional 1U rack shelf |
| Furniture mount |
Yes, with optional through-desk mounting kit |
| Pole mount |
Yes, attachable to a projector pole mount using optional mounting kit |
| Enclosure type |
Metal |
| Enclosure dimensions |
|
| DVI DL 201 TX |
1.75" H x 8.75" W x 3.0" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 7.6 cm D
(Depth excludes connectors.) |
| DVI DL 201 RX |
1.0" H x 4.3" W x 3.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors.) |
| Product weight |
Transmitter: 0.6 lbs (0.3 kg)
Receiver: 0.3 lbs (0.1 kg)
Transmitter and receiver: 0.9 lbs (0.4 kg) |
| Shipping weight |
2 lbs (1 kg) |
| Vibration |
ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
|
| Safety |
CE, c-UL, UL |
| EMI/EMC |
CE, C-tick, FCC Class A**, ICES, VCCI |
| MTBF |
30,000 hours |
| Warranty |
3 years parts and labor |
