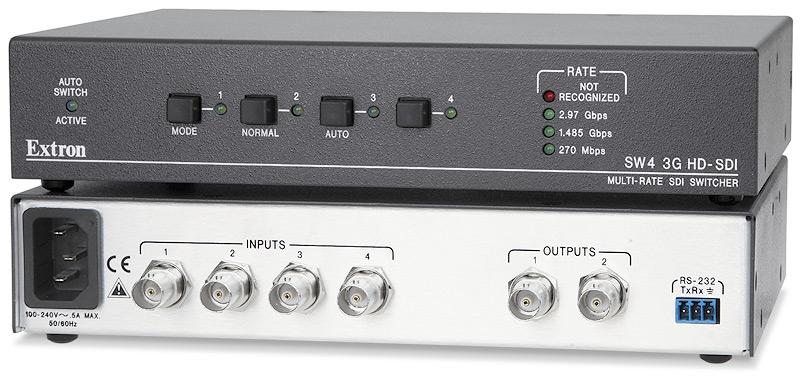

[15140]EXTRON HD-SDI ½ºÀ§ÃÄ SW4 3G HD-SDI [°¡°Ý¹®ÀÇ]
½º   Æå : Four Input Multi-Rate SDI Switcher
Á¦Á¶»ç : Extron (ÀͽºÆ®·Ð)
¼ö   ·® : °³
ÆǸŰ¡ : 0 ¿ø
Àû¸³±Ý : 0 ¿ø
100000ÀÌ»ó ±¸¸Å½Ã ¹«·á¹è¼Û ³³Ç°/³³±â °ßÀû¿äûÀº ÀüÈ­Áֽñ⠹ٶø´Ï´Ù.
Àå¹Ù±¸´Ï´ã±â ¹Ù·ÎÁÖ¹®Çϱâ
ÀÌÀüÈ­¸é
SW4 3G HD-SDI
Video
   Gain  Unity
   Resolution  8 or 10 bits, automatic
   Operation standards  SMPTE 259M, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120, DVB-ASI (output 1 only)
   Auto data rate lock  Yes
Video input
   Number/signal type  4 single link SDI, HD-SDI, or 3G-SDI digital component video
   Connectors  4 female BNC
   Data rates  19 Mbps to 2.97 Gbps
   Input cable equalization  Automatic for up to -30 dB of cable loss
      HD-SDI  120 m (400') using Extron RG6 cable
60 m (200') using Extron RG59 cable
      SDI  150 m (500') using Extron RG6 cable
120 m (400') using Extron RG59 cable
   Nominal level  0.8 Vp-p ¡¾10%
   Minimum/maximum levels  0.5 V to 1 Vp-p with no offset
   Impedance  75 ohms
   Return loss  <-15 dB @ 1 MHz to 1.5 GHz
Video output
   Number/signal type  2 single link SDI, HD-SDI, or 3G-SDI digital component video
   Connectors  2 female BNC
   Re-clocking  Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, or bypassed for other rates
   Nominal level  0.8 Vp-p ¡¾10%
   Minimum/maximum levels  0.5 V to 1.0 Vp-p
   Impedance  75 ohms
   Return loss  <-15 dB @ 1 MHz to 1.5 GHz
   DC offset  ¡¾5 mV with input at 0 offset
Control/remote — switcher
   Serial control port  RS-232, 3.5 mm captive screw connector, 3 pole
   Baud rate and protocol  9600 baud, 8 data bits, 1 stop bit, no parity
   Program control  Extron control/configuration program for Windows¢ç
Extron Simple Instruction Set (SIS¢â)
General
   Power  100 VAC to 240 VAC, 50-60 Hz, 4 watts, internal
   Temperature/humidity  Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing
Operating: +32 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Mounting
      Rack mount  With optional 1U rack shelf
   Enclosure type  Metal
   Enclosure dimensions  1.7" H x 8.7" W x 6.0" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 15.2 cm D)
(Depth excludes connectors.)
   Product weight  1 lb (0.5 kg)
   Shipping weight  2 lbs (1 kg)
   Vibration  ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
   MTBF  30,000 hours
Product Diagram
